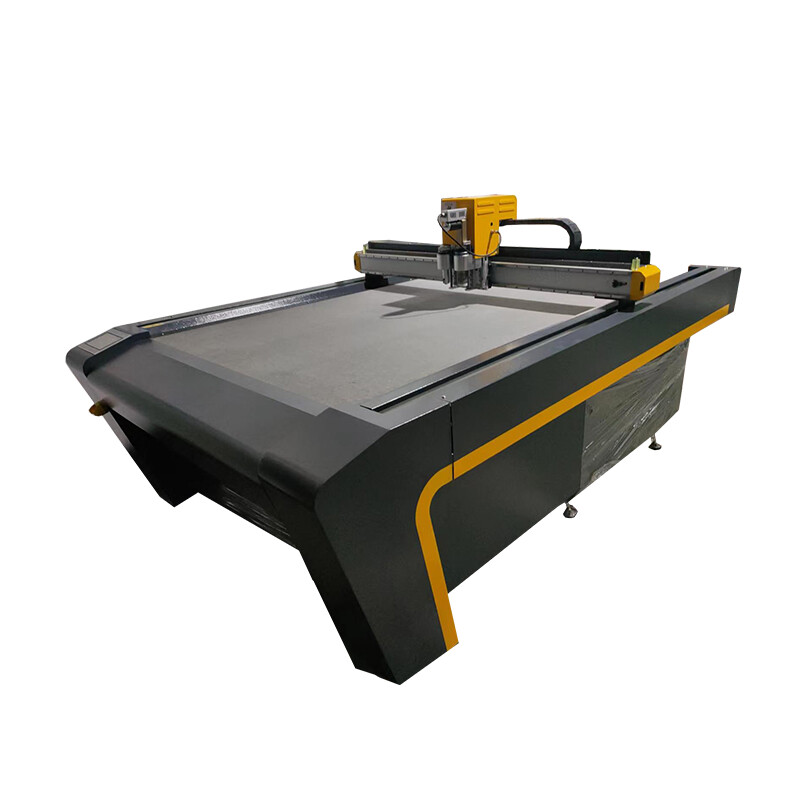

PRODUCT DESCRIPTION

Main technical parameters

ModelJR-0906ZDDJR-1410ZDDJR-1813ZDDJR-2516ZDD
Cutting range900 (L)*600(W)1400 (L)*1000 (W)1800(L)*1300(W)2500 (L)*1600(W)
Outline Size1600(L) *1150 (W)2100 (L)*1550(W)2500(L)*1850(W)3300 (L)*2150(W)
FunctionsCutting, creases, dotted lines, half-cutting, V-grooves, laser or camera positioning, safety protection
ToolsStandard equipment: vibrating knife, pressure wheel and infrared laser light, optional half-cut knife, pneumatic knife, miter knife, speaking knife, punching, pneumatic pen, industrial camera, etc
MaterialsCorrugated paper, cardboard, industrial gray board, coated paper, blanket, composite materials, PVC glue board, honeycomb board, self-adhesive, EPE, EPS and other flexible materials.
Cutting SpeedSelf-adjustable speed, straight cutting up to 1200mm/s (varies depending on cutting material thickness and material)
Thickness Max.Standard machine 40mm (customized machine can be larger thickness)
Blade types39 degree knife: cut cardboard paper and grayboard paper within 3mm,


26 degree knife: cut corrugated paper within 5-7mm.

20 degree knife: cut corrugated paper within 7-10mm.

16 degree knife: cut corrugated paper within 10-15mm.

45/60 knives; Cutting pearl cotton foam within 5-50mm

Special knife: cutting corrugated paper, cardboard, kraft paper, gray board paper, PVC glue board, self-adhesive paper, etc. within 15mm

Special V-shaped knife: cutting 90 degrees -120 degrees V-shaped groove (optional)

Pressure wheel3mm pressure wheel: suitable for corrugated paper within the thickness range (3-5) mm 5mm pressure wheel: suitable for corrugated paper within the thickness range (5-7) mm 7mm pressure wheel: suitable for corrugated paper within the thickness range (7-15) mm
Transmission modeHigh-precision rack and pinion and belt and linear guide
equipment consistsa workbench, a control box, and a vacuum suction pump
Cutting methodThe blade contacts the material for cutting
File formatCompatible with CAD, CorelDRAWs AI and other graphic editing software formats, as well as PLT formats
Control systemServo motor and drive
Table pad4mm felt pad as standard (optional silicone rubber pad)
Applicable voltage VC380V ±10%, 50HZ or VC220V±10%, or customized according to client need
Cutting accuracy±0.05mm
Repeatability±0.02mm
Motor frequencyThe motor frequency of the cutting head > 12,000 times/min, which can be adjusted according to the material.
Fixed methodvacuum adsorption
VacuumAccording to the size of the model, it can choose 2.2KW, 5.5KW, 7.5KW, etc
