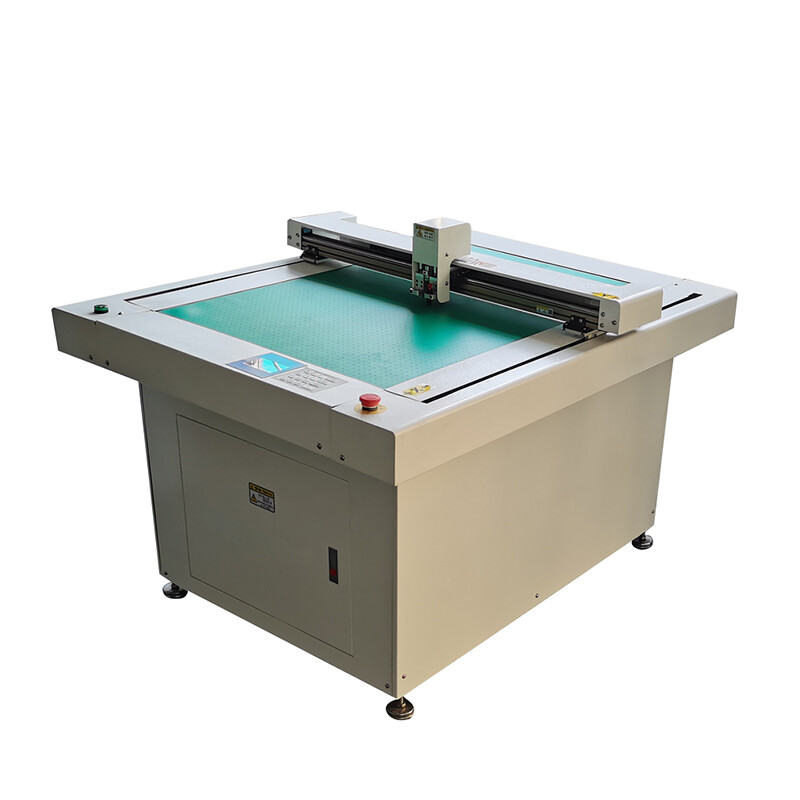

Silicone foam material cutting machine
0755-23205389
0755-23205389
brooklzy@cuttingcn.com
CONTACT US
MESSAGE
PRODUCT DESCRIPTION
Model
JR-0906TD
JR-1209TD
JR-1512TD
JR-1812TD
Cutting range(mm)
900*600
1200*900
1500*1200
1800*1200
Max Speed(mm/s)
1500
1500
1500
1500
Max Thickness(mm)
2
2
2
2
Cutting accuracy (mm)
≤0.05
≤0.1
≤0.1
≤0.1
Min Dia. of round(mm)
1
1
1
1
Output port
Ethernet port
File format
HP-GL compatible formats, including DXF, CDR, AI and other common formats
Fixed way
Vacuum adsorption
Voltage
AC 380V±10% or 220V±10% 50HZ/60HZ, can also be customized according to the customer’s voltage
Overall dimension(mm)
1450*1050*950
1750*1350*950
2050*1650*950
2450*1650*950
Total weight(Kg)
220
280
350
480
